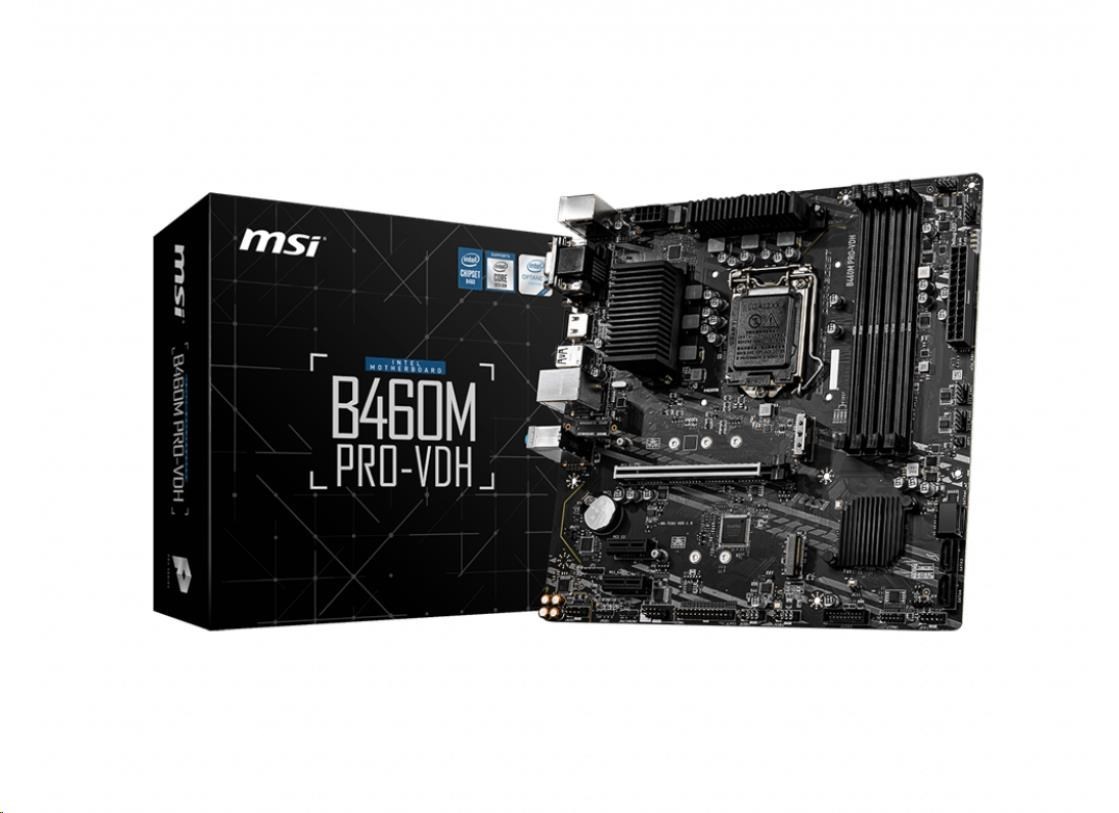

MSI MB Sc LGA1200 B460M PRO-VDH, Intel B460, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX -

B460M PRO-VDHPRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.Supports 10th Gen... číst celé

B460M PRO-VDH

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Supports 10th Gen Intel Core™ / Pentium Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 2933(Max) MHz

Core Boost: With premium layout and digital power design to support more cores and provide better performance.

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

TECHNICAL SPECIFICATIONS

CPU	Supports 10th Gen Intel Core™ and Pentium Gold / Celeron processors for LGA 1200 socket.
Chipset	Intel B460 Chipset
Memory	4x DDR4 memory slots supporting up 128GB Intel Core™ i7/ i9 - Support DDR4-2933 Memory (Max.) Intel Core™ i5 (Below) - Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Expansion Slot	1 x PCIe 3.0 x16 slot (from CPU) 2 x PCIe x1 slots (from PCH)
Onboard Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz 1 x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
Audio	Realtek ALC892/ALC897 Codec - 7.1-Channel High Definition Audio
LAN	1 x Realtek RTL8111H Gigabit LAN Controller
Storage	Intel B460 Chipset 4 x SATA 6Gb/s ports ^[1] 2 x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260 / 2280/ 22110 storage devices^[1] M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane™ Memory Ready for the M2_2 slot only^[2] Supports Intel Smart Response Technology for Intel Core™ processors
RAID	Intel B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Intel B460 Chipset 6 x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector
Back Panel Connectors	1 x Keyboard / Mouse 1 x VGA 1 x LAN 2 x USB 2.0 1 x DVI-D 1 x HDMI 4 x USB 3.2 Gen 1 5Gbps Type-A Audio Connectors

[1] SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
[2] Before using Intel Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
