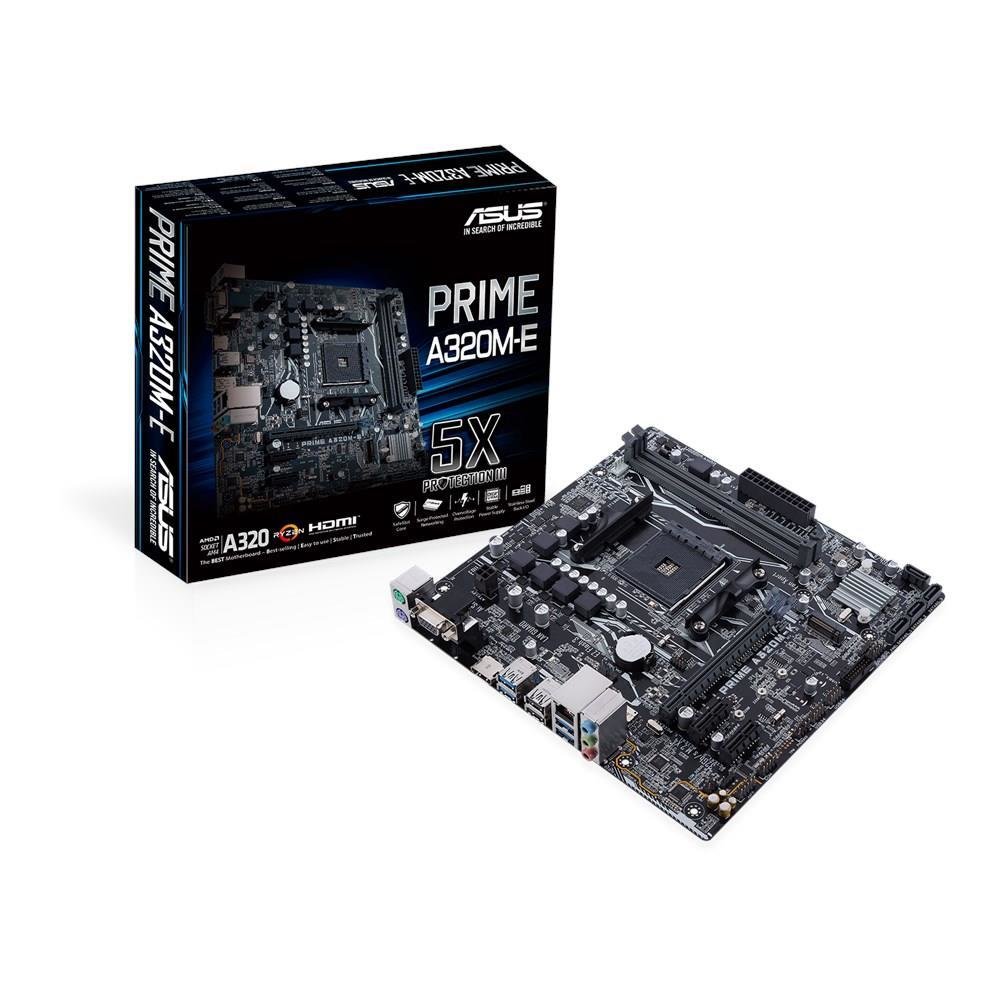

ASUS MB Sc AM4 PRIME A320M-E, AMD A320, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX -

TECHNICAL SPECIFICATIONSCPUAMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores* Refer to www.asus.com for CPU support listChipsetAMD A320MemoryAMD Ryzen™ Processors2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC,... číst celé

TECHNICAL SPECIFICATIONS

CPU	AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list
Chipset	AMD A320
Memory	AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Hyper DIMM support is subject to the physical characteristics of individual CPUs. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *¹ Multi-VGA output support: HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB
Expansion Slots	AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 2 x PCIe 2.0 x1
Storage	AMD A320 chipset: 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 10 AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN	Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports	AMD Ryzen™/7th Generation A-series/Athlon™ Processors: 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset: 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD A320 chipset: 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A) AMD A320 chipset: 4 x USB 2.0 port(s) (4 at mid-board)
Special Features	ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM
Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (teal blue) 4 x USB 3.1 Gen 1 (blue) 3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System	Windows 10 64-bit
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
