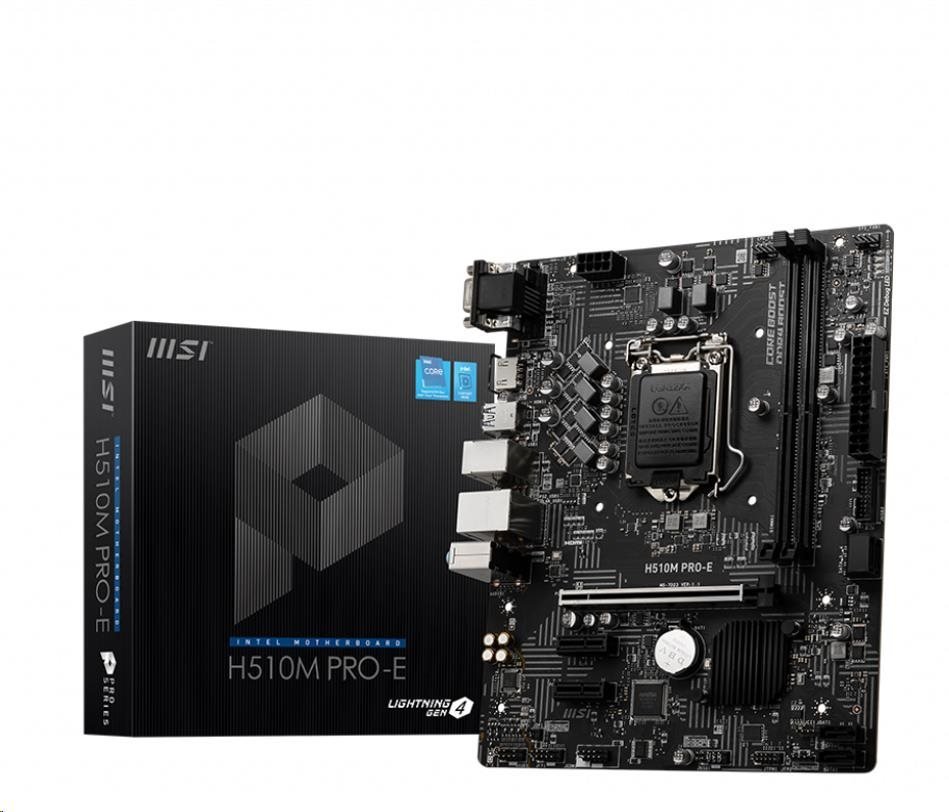

H510M PRO-E

• Supports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket


• Supports DDR4 Memory, up to 3200(Max) MHz


• Core Boost: With premium layout and digital power design to support more cores and provide better performance.


• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.


• Lightning Fast Experience: PCIe 4.0


• Audio Boost: Reward your ears with studio grade sound quality


• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PROCESSOR

Supports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors*
*Please go to www.intel.com for more compatibility information.

CHIPSET

Intel H510 Chipset

MEMORY

2x DDR4 memory slots, support up to 64GB*
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
*Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From PCH)

ONBOARD GRAPHICS

1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz*/
*Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

STORAGE

4x SATA 6Gb/s ports (From H510 Chipset)

USB

Intel H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio

LAN

1x Realtek RTL8111 Gigabit LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x USB 2.0 connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

BACK PANEL PORTS

VGA
HDMI
USB 3.2 Gen 1 5Gbps Type-A
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 2.0
MSI H510M-A PRO back panel ports

DIMENSIONS

mATX Form Factor
9.3 x 7.5 in. (23.6 cm x 19.0 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows 10 64-bit
