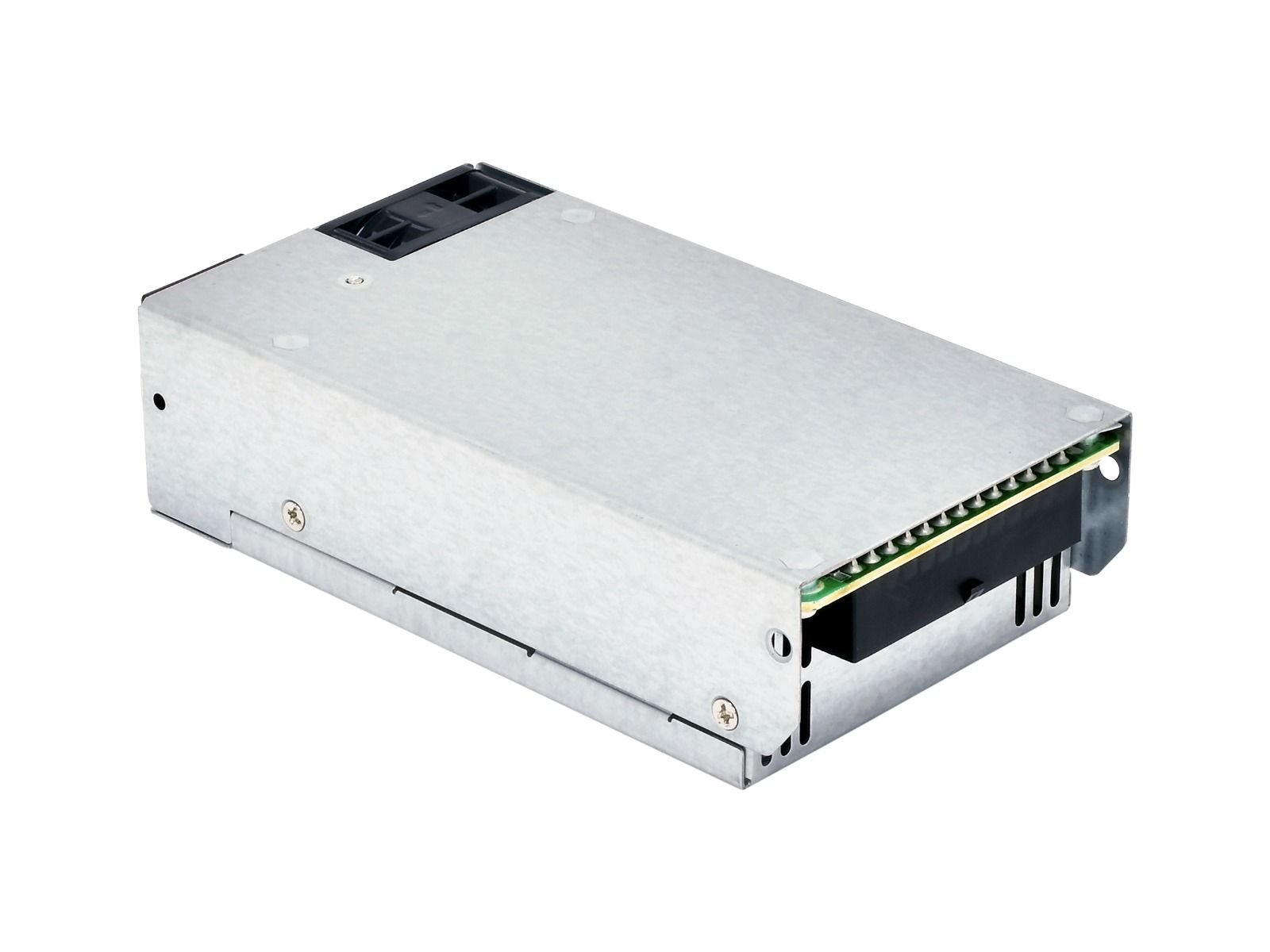

SEASONIC zdroj 300W SSP-300SUB, 80+ Bronze, Flex ATX v1.0 -

SUB Flex ATX Power SupplyThe Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced... číst celé

SUB Flex ATX Power Supply

The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low noise fan control makes them a pleasant companion in any industrial system.

OVERVIEW:

SUG	SUB	M1U
80PLUS	Gold	Bronze	Gold
Intel ATX 12 V v2.31 compliant	YES	YES	YES
EPS 12 V compliant	YES	YES	YES
Flex ATX v1.0 compliant	YES	YES	YES
Dimensions	150 mm (L) x 81.5 mm (W) x 40.5 mm (H)	150 mm (L) x 81.5 mm (W) x 40.5 mm (H)	190 mm (L) x 81.5 mm (W) x 40.6 mm (H)
DC to DC converter design	Yes	No	Yes
Forward converter circuit	No	YES	No
Fully modular cables	Yes	Yes	Yes
Semi modular cables	No	No	No
Fixed cables	No	No	No
40 mm double ball bearing fan	Yes	Yes	Yes
S3FC - including Fanless mode	No	Yes	Yes
S2FC - Smart and Silent Fan Control	Yes	No	No
Easy-swap connector design	Yes	Yes	Yes
Zero minimum load on 3.3 V rail	Yes	No	Yes
Short circuit protection on all outputs	Yes	Yes	Yes
Over voltage protection	Yes	Yes	Yes
Over power protection	Yes	Yes	Yes
100 % HiPot test	Yes	Yes	Yes

Specifications

SSP-300SUB

Specifications
Input frequency	47 / 63 Hz
Inrush current at cold start	100 A max.
Efficiency	80 PLUS Bronze
Line regulation	± 1 % (typical)
Load regulation	± 5 % (typical)
Cross regulation	± 5 % (typical)
Ripple / noise	1 %
MTBF, full load @ 25 °C ambient (excl. DC fan)	> 100,000 hours
Active Power Factor Correction	95 % (typical)
