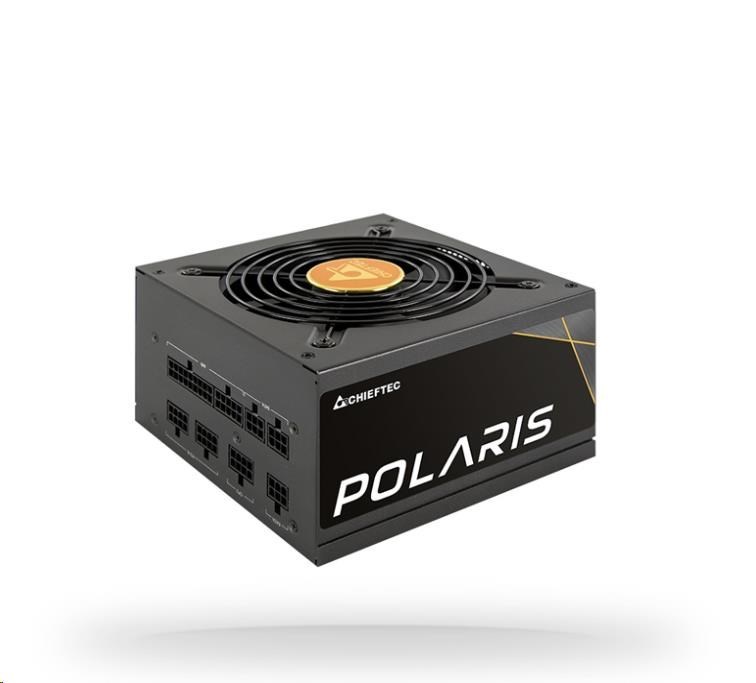

CHIEFTEC zdroj Polaris Series, PPS-550FC, 550W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold -

PPS-550FC80 PLUS Gold certified efficiencyFully modular cable managementHigh power density design for compact sizeLLC half-bridge converter with DC-to-DC technologyThe Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power... číst celé

PPS-550FC

80 PLUS Gold certified efficiency

Fully modular cable management

High power density design for compact size

LLC half-bridge converter with DC-to-DC technology

The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.

With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.

TECHNICAL SPECIFICATIONS

PERFORMANCE
Model	Polaris 550W
Article no.	PPS-550FC
EAN code	0753263076427
Weight (without/with package)	2.025 kg / 2.330 kg
AC Input	100-240V / 8.0A
Frequency	50-60Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	105W
+12V 1	45.8A / 550W
+12V 2	-
+12V 1 & +12V 2 combined	-
P.F.	>0,9
-12V	0,3A / 3,6W
+5VsB	3.0A / 15W
Maximum Power	550W

CONNECTORS
20+4PIN ATX	1
8 PIN EPS (4+4)	2
8 PIN PCIe (6+2)	2
SATA	6
MOLEX	3
FLOPPY	1

CABLE LENGHT
20+4PIN ATX	650
8 PIN EPS (4+4)	650/150
8 PIN PCIe (6+2)	500/150
SATA	2x 450/150/150
MOLEX	450/150/150/150
FLOPPY	Molex

FEATURES
Specification	ATX 12V 2.4
Form factor	PS II
Efficiency	80 PLUS Gold
Dimension (DxWxH)	140mm x 150mm x 87mm
Fan	120mm silent fan
Security	AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) OCP (Overcurrent protection) UVP (Undervoltage protection)
Warranty	24 Months
