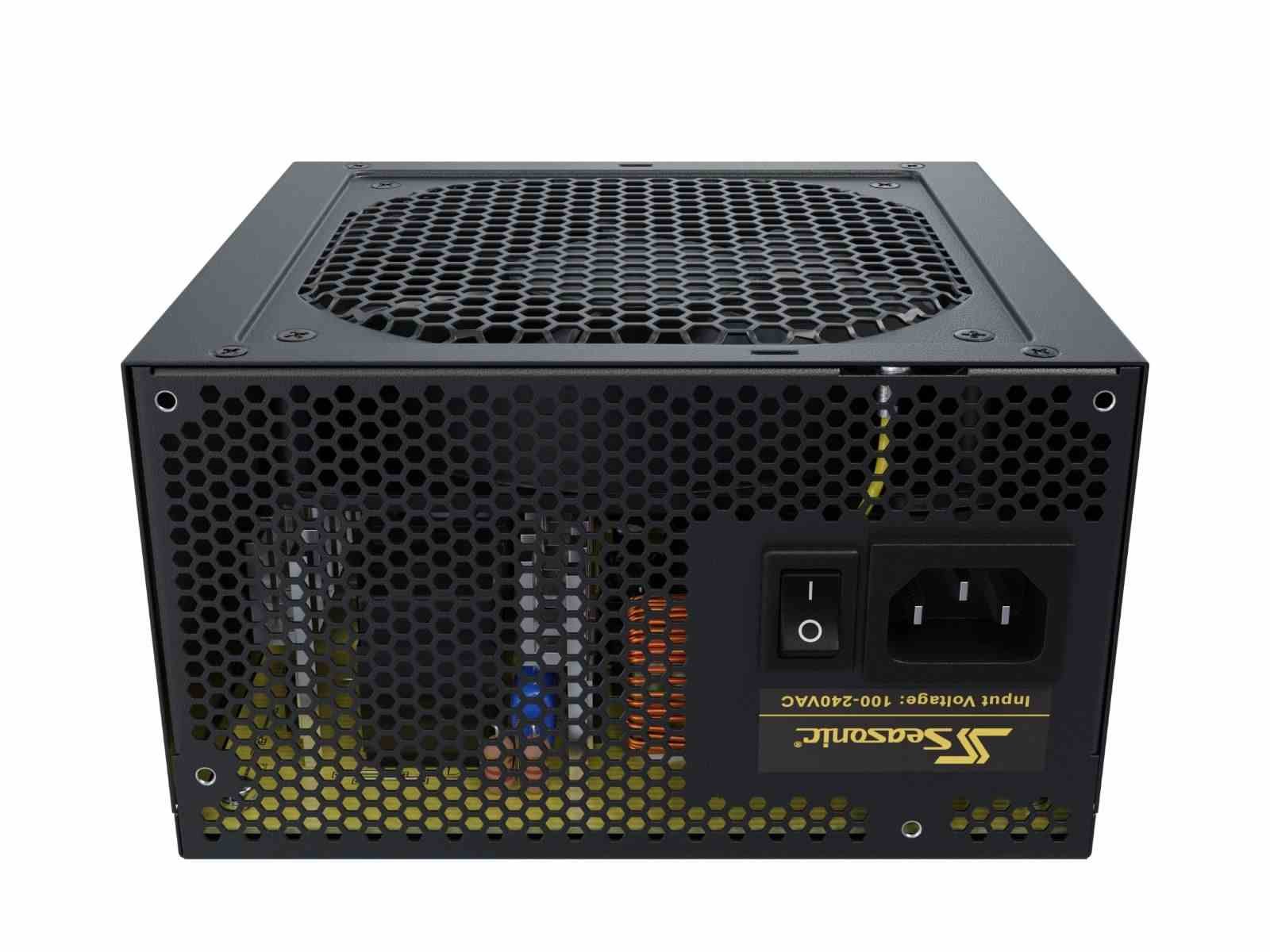

SEASONIC zdroj 650W CORE GM-650 (SSR-650LM), ATX, 12cm fan, 80+ GOLD -

The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.

80 PLUS Gold

The CORE GM Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.

SEMI-MODULAR CABLES

Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.

S²FC - Smart and Silent Fan Control

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

feature summary

80 PLUS Gold certified

Semi-modular

Tight Voltage Regulation

S2FC - Smart and Silent Fan Control

DC to DC Converter Design

105 °C Japanese Capacitor

7 years warranty

Specifications

CORE-GM-650

Technical Specifications
80PLUS		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	Smart and Silent Fan Control
	Fan Bearing	Sleeve Bearing
	Life Expectancy	25,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, OCP, OTP, SCP, UVP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 9 - 4.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	54 A	0.3 A	3 A
	Maximum Power	100 W		648 W	3.6 W	15 W
	Total continuous power	650 W

Cables

CORE-GM-650

Cable type	Connector(s) per cable	Total length (mm)	Number(s) of cable(s) included
MB (24/20 pins)	1	610	1
CPU (8/4 pins)	1	650	1
PCIe (8/6 pins)	2	750	2
PCIe (8/6 pins)	1	750	0
SATA	4	810	1
SATA	4	860	0
SATA	4	760	0
SATA	2	700	0
SATA	2	570	0
SATA	2	470	0
SATA	2	450	1
Molex	3	690	1
Molex	2	470	0
Molex to SATA 3.3 Adapter	2	300	0
Molex to FDD Adapter	1	101	0
