CHIEFTEC GPU-850FCFully modular cable management80 PLUS Platinum EfficiencyPremium Japanese capacitors for minimal ripple noiseQuality case housing finish with eye-catching fan filter designThe Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality... číst celé

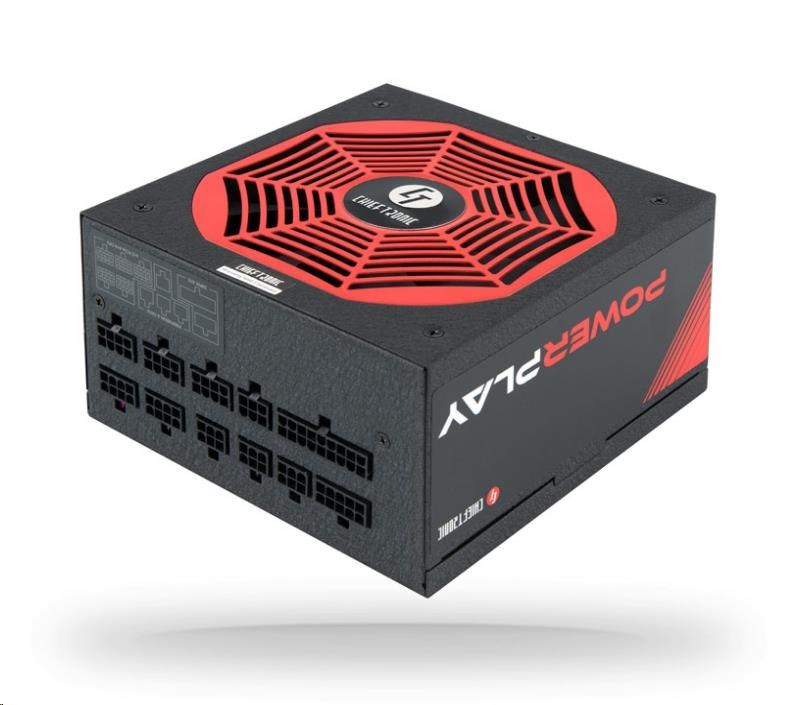

CHIEFTEC GPU-850FC

Fully modular cable management

80 PLUS Platinum Efficiency

Premium Japanese capacitors for minimal ripple noise

Quality case housing finish with eye-catching fan filter design

The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.

Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.

This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.

TECHNICAL SPECIFICATIONS

PERFORMANCE
Model	PowerPlay 850W
Article no.	GPU-850FC
EAN code	0753263076090
Weight (without/with package)	3.41 kg / 3.82 kg
AC Input	100 - 240V / 12.0A
Frequency	47 - 63Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	-
+12V 1	70.83A / 849.96W
+12V 2	-
+12V 1 & +12V 2 combined	-
P.F.	>0,9
-12V	0,3A / 3,6W
+5VsB	3,0A / 15W
Maximum Power	850W

CONNECTORS
20+4PIN ATX	1
8 PIN EPS (4+4)	2
8 PIN PCIe (6+2)	6
SATA	9
MOLEX	3
FLOPPY	1

CABLE LENGHT
20+4PIN ATX	600
8 PIN EPS (4+4)	700
8 PIN PCIe (6+2)	2x 600/150 & 2x 600
SATA	3x 800/150/150
MOLEX	700/150/150/150
FLOPPY	Molex

FEATURES
Specification	ATX 12V 2.3
Form Factor	PS II
Efficiency	80 PLUS PLatinum
Dimension (DxWxH)	160 mm x 150 mm x 86 mm
PFC	Active PFC
Fan	140mm silent fan
Security	OVP (Over voltage protection) OPP (Over power protection) OCP (Over current protection) SCP (Short-circuit protection) OTP (Over temperature protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) No-load operation
Warranty	36 Months
