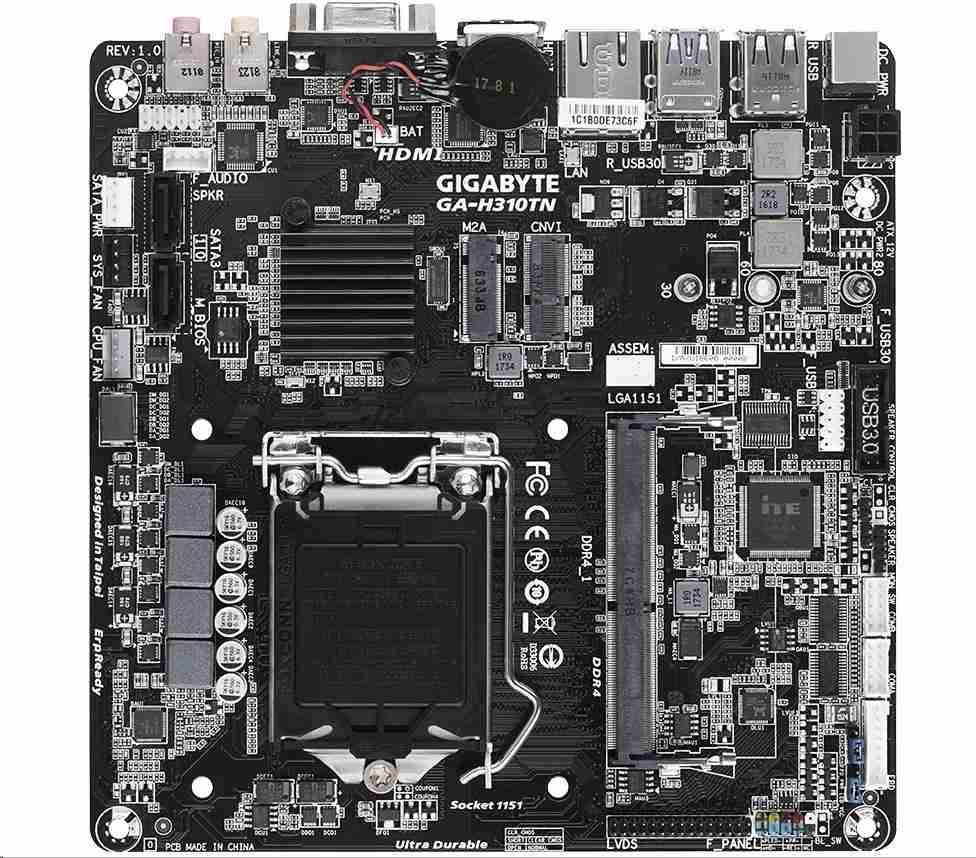

GIGABYTE MB Sc LGA1151 H310TN-R2, Intel H310, 1xDDR4, VGA, thin mini-ITX -

GA-H310TN (rev. 1.0)Socket LGA1151 for Intel Core i7/i5/i3/Pentium/Celeron (Coffee lake-S)Intel Gen10 Intel Graphics DX 11/12, OGL4.3/4.4Supports Single Channel DDR4 2133/2400MHz, 1 x SO-DIMM, up to 16GB system memory1 x HDMI, 1 x VGA, 1 x Dual Channel 24-bit LVDS4 x USB 3.0, 4 x USB 2.0, 2 x... číst celé

GA-H310TN (rev. 1.0)

Socket LGA1151 for Intel Core i7/i5/i3/Pentium/Celeron (Coffee lake-S)

Intel Gen10 Intel Graphics DX 11/12, OGL4.3/4.4

Supports Single Channel DDR4 2133/2400MHz, 1 x SO-DIMM, up to 16GB system memory

1 x HDMI, 1 x VGA, 1 x Dual Channel 24-bit LVDS

4 x USB 3.0, 4 x USB 2.0, 2 x SATA3

1 x M.2 wifi, 1 x M.2 SSD

Gigabit LAN: 1 x Realtek Lan

1 x TPM 2.0 IC onboard

19 V DC-in

TECHNICAL SPECIFICATIONS

CPU	Support for 8th Generation Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel H310 Express Chipset
Memory	1 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB
Expansion Slots	1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A) 2 x SATA 6Gb/s connectors
USB	Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek GbE LAN chips (10/100/1000 Mbit)
TPM	Infineon chip, supporting TPM 2.0
Back Panel Connectors	1 x DC-In power connector 2 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x RJ-45 port 1 x HDMI port 1 x D-Sub port 2 x audio jacks
Internal I/O Connectors	1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x SATA 6Gb/s connectors 1 x SATA power connector 1 x front panel header 1 x front panel audio header 1 x battery power cable connector 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 2 x serial port headers 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x flat panel display header (FPD) 1 x flat panel display power jumper (FPD_PWR) 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x Clear CMOS jumper 1 x chassis intrusion header
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for @BIOS Support for Q-Flash
Bundle Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 10 64-bit
Form Factor	Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
